RH HOPPER SERIES

Product Details

Save money over costly steel with these easy to clean, FDA-compliant polyethylene totes and hoppers built tough to last long and transfer materials quickly and effectively.

  • Lightweight, two-piece unit includes a single-piece polyethylene hopper set in a removable polyethylene base.

  • Heavy-duty, natural color hopper with base in color of your choice

  • 30 degree hopper slope allows for easy and complete discharge of tablets and caplets.

  • Unlike stainless steel, this unit is rust-free and the polyethylene base reduces damage to floors and walls.

  • Includes a batch card holder for easy product identification.

  • Select sizes available with dust-cover or lever-lock style lids.

  • Select sizes available with Iris or slide gate valve.

  • Plastic chute available for use with totes (stand not available).

  • 100% virgin polyethylene construction adds impact resistance for maximum strength.

  • Stackable, space-saving design maximizes floor space.

  • Economical polyethylene saves money and is a long lasting alternative to steel.

  • Units fill from the top, discharge from the bottom, and smooth interior surfaces allow for fast material transfer and easy cleaning.

  • Made with FDA-compliant polyethylene and pigments for safe use in regulated industries.

  • Wide variety of options allows you to customize your tote exactly as you want it.


Options

  • Custom Colors

  • Custom Graphics (MOGs)

  • Stenciling


Poly Totes and Hoppers

Capacity
(cubic feet)

Width (in)

Length (in)

Height (in)

Weight (lbs)

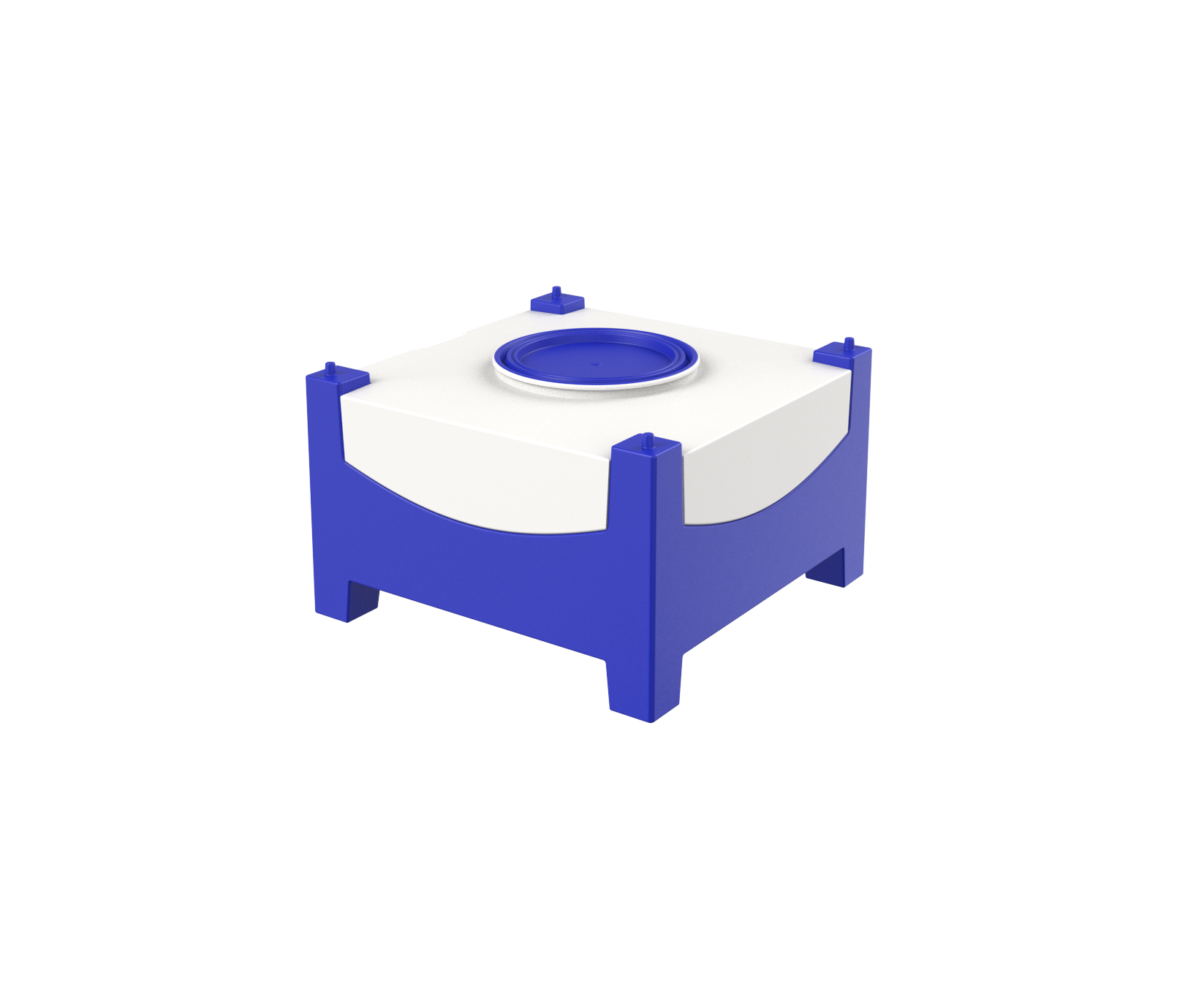

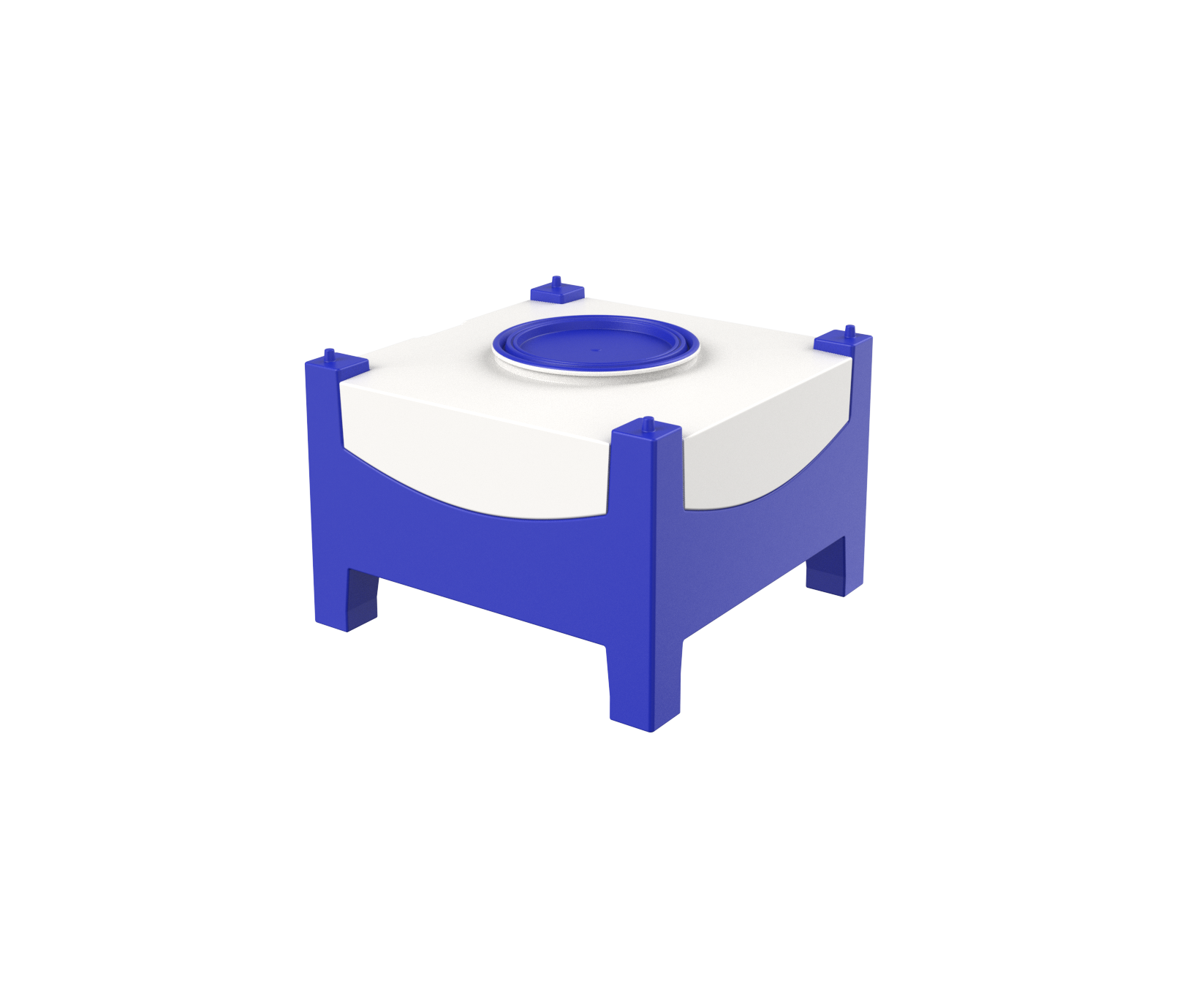

RH-13 Includes 21.5″ Diameter Lever Lock Lid and accepts any 8″ Iris valve or slide gate valve

13

44

44

29

110

RH-14 Includes 21.5″ Diameter Lever Lock Lid and a built-in stainless steel slide gate valve

14

44

44

38

165

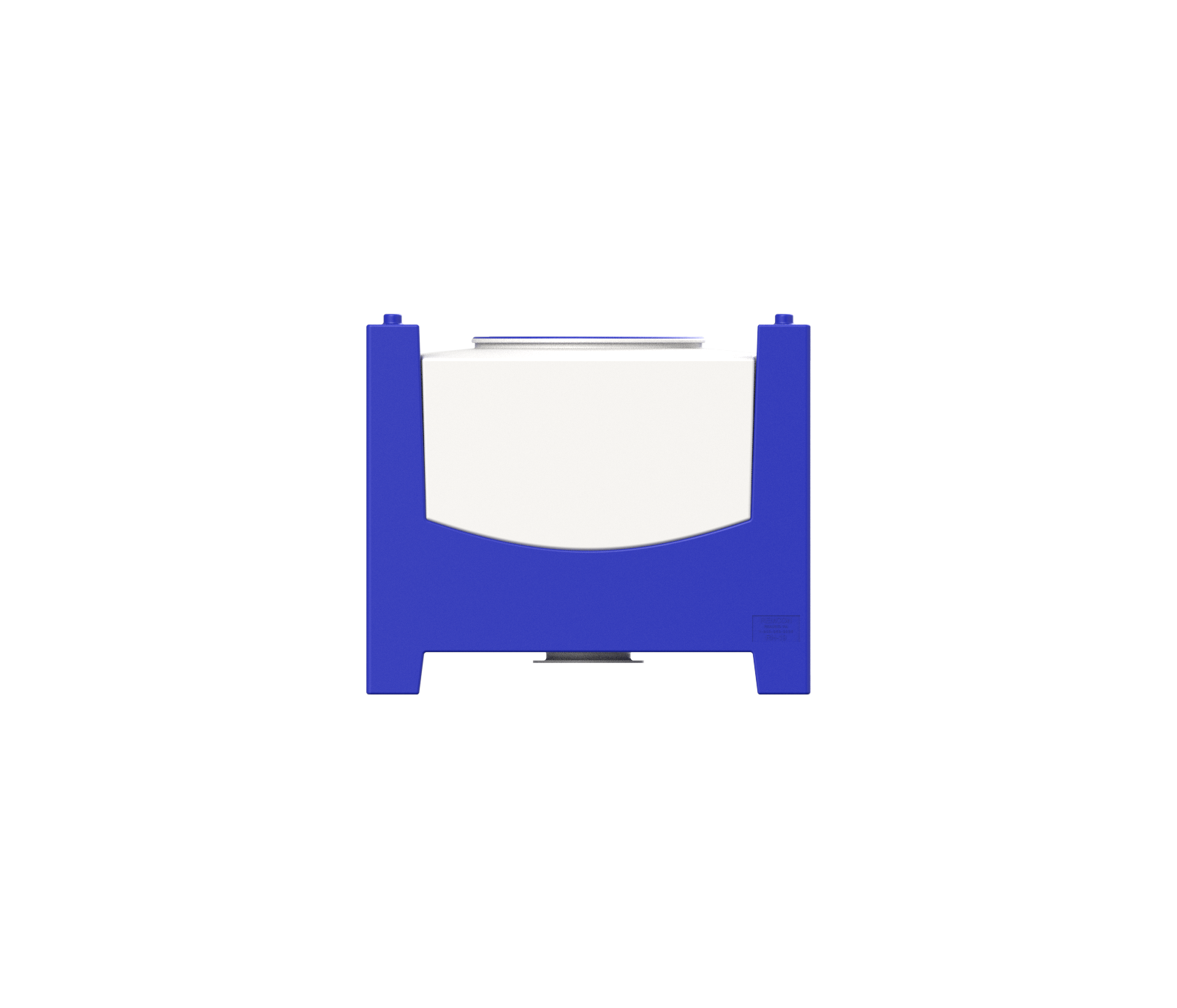

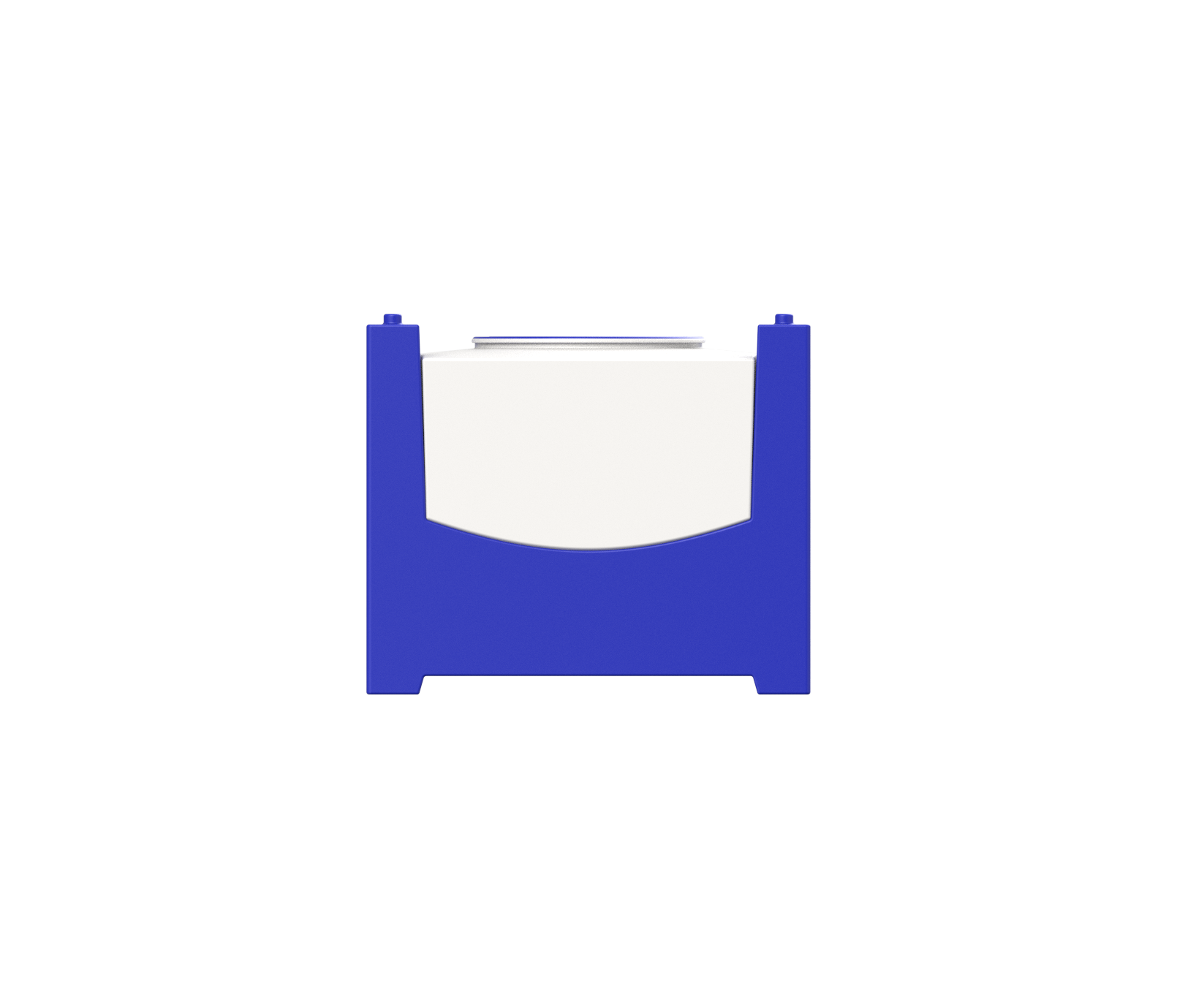

RH-19 Includes 21.5″ Diameter Lever Lock Lid and accepts any 8″ Iris valve or slide gate valve

19

42

42

36

151

RH-19 Includes 24″ Diameter Dust Cover with Security Tabs and accepts any 8″ Iris valve or slide gate valve

19

42

42

36

151

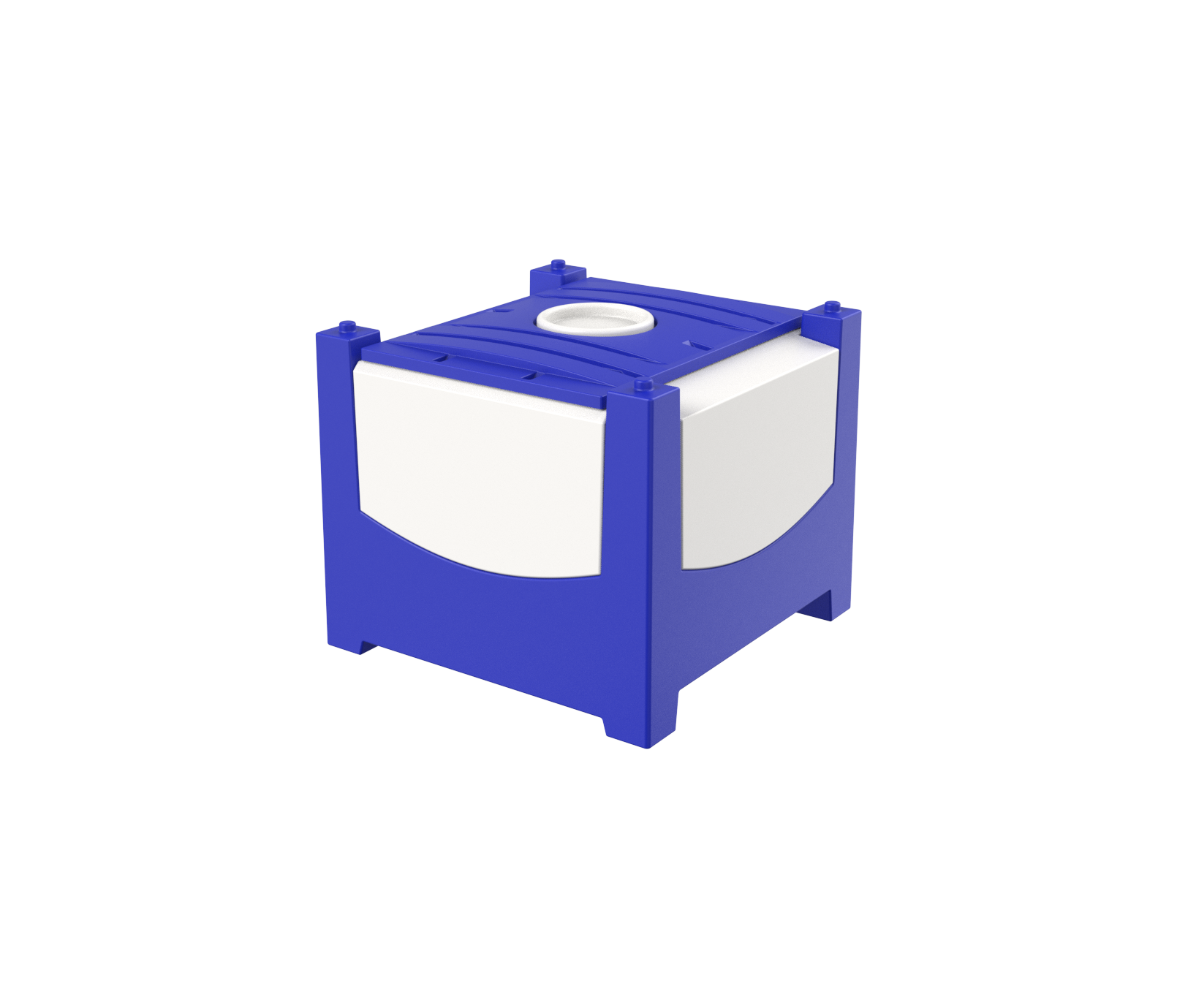

RH-19 Includes 40.75″ x 30.5″ Dust Cover and Fill Port and accepts any 8″ Iris valve or slide gate valve

19

42

42

36

151

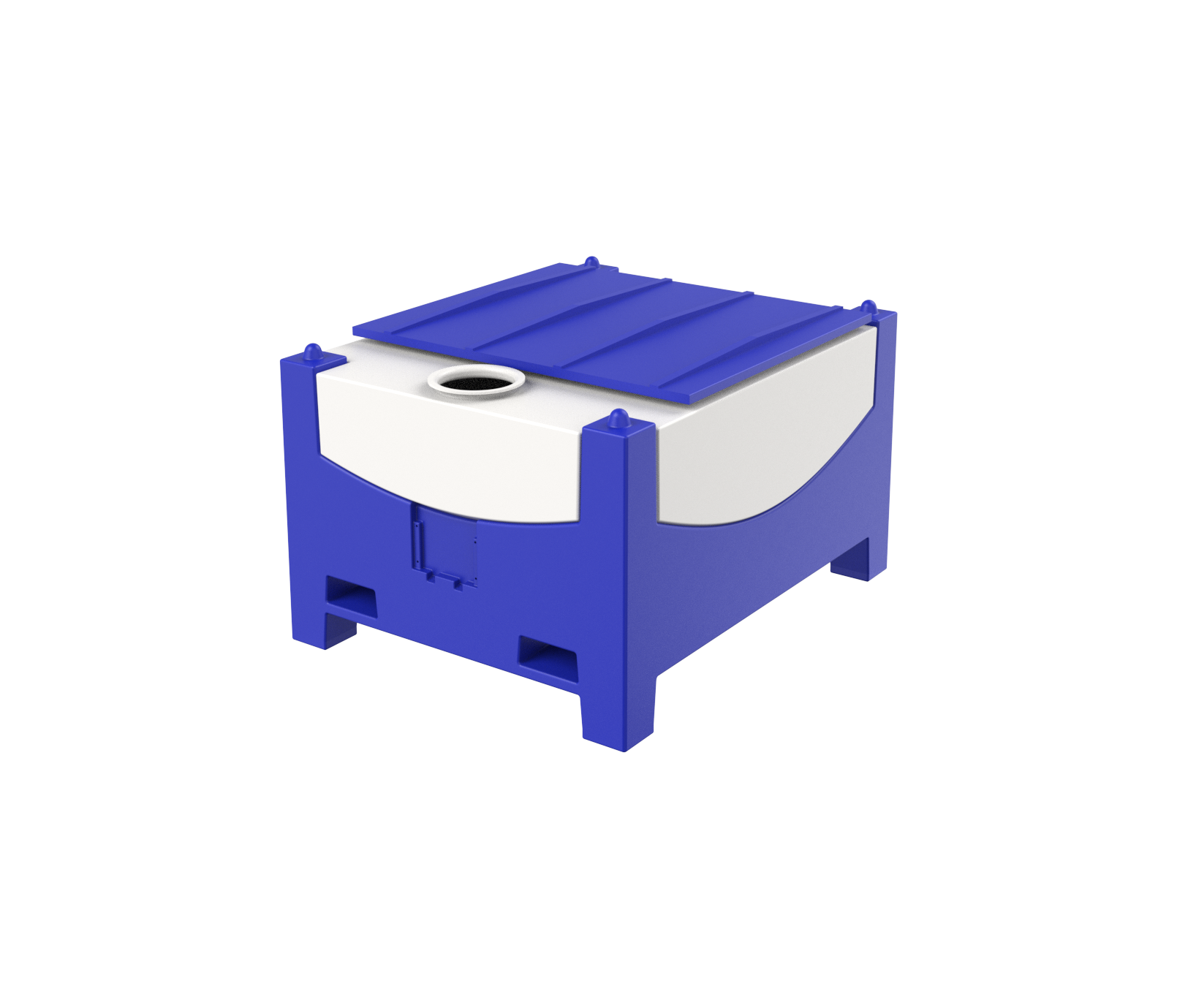

RH-20 Includes 43″ x 36″ Dust Cover and Fill Port and accepts any 6″ Iris valve

20

43

54

32

155

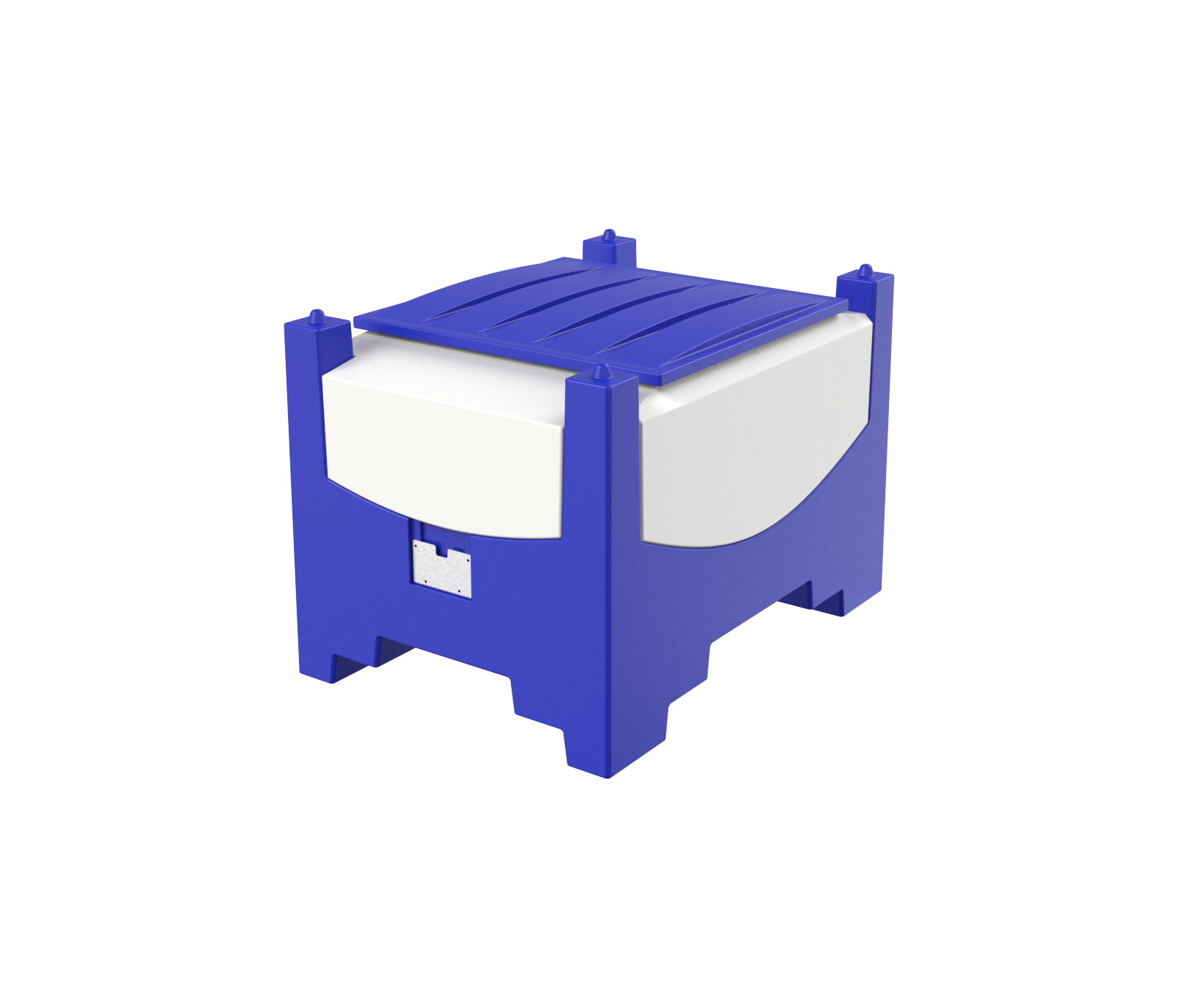

RH-25 Includes 38.5″ x 37″ Dust Cover and accepts any 8″ Iris valve

25

40

56

39

166

Resources

Technical Drawings
