RM HOPPER SERIES
Product Details
Save money over costly steel with these easy to clean, FDA-compliant polyethylene totes and hoppers built tough to last long and transfer materials quickly and effectively.
Two-piece unit includes a single-piece polyethylene tote set in a removable steel base.
60 degree tote slope allows for easy and complete discharge of dry resins, powders, or other loose granular solids.
Streamlines material handling and eliminates the disposal costs of bulk bags.
Eliminates contamination and waste from cardboard combo bins and other containers.
All units include a 21 1/2″ plastic lever locking style lid and metal ring.
100% virgin polyethylene construction adds impact resistance for maximum strength.
Stackable, space-saving design maximizes floor space.
Economical polyethylene saves money and is a long lasting alternative to steel.
Units fill from the top, discharge from the bottom, and smooth interior surfaces allow for fast material transfer and easy cleaning.
Made with FDA-compliant polyethylene and pigments for safe use in regulated industries.
Wide variety of options allows you to customize your tote exactly as you want it.
Options
Custom Colors
Custom Graphics (MOGs)
Stenciling
Poly Totes and Hoppers | Capacity | Width (in) | Length (in) | Height (in) | Weight (lbs) |
|---|---|---|---|---|---|

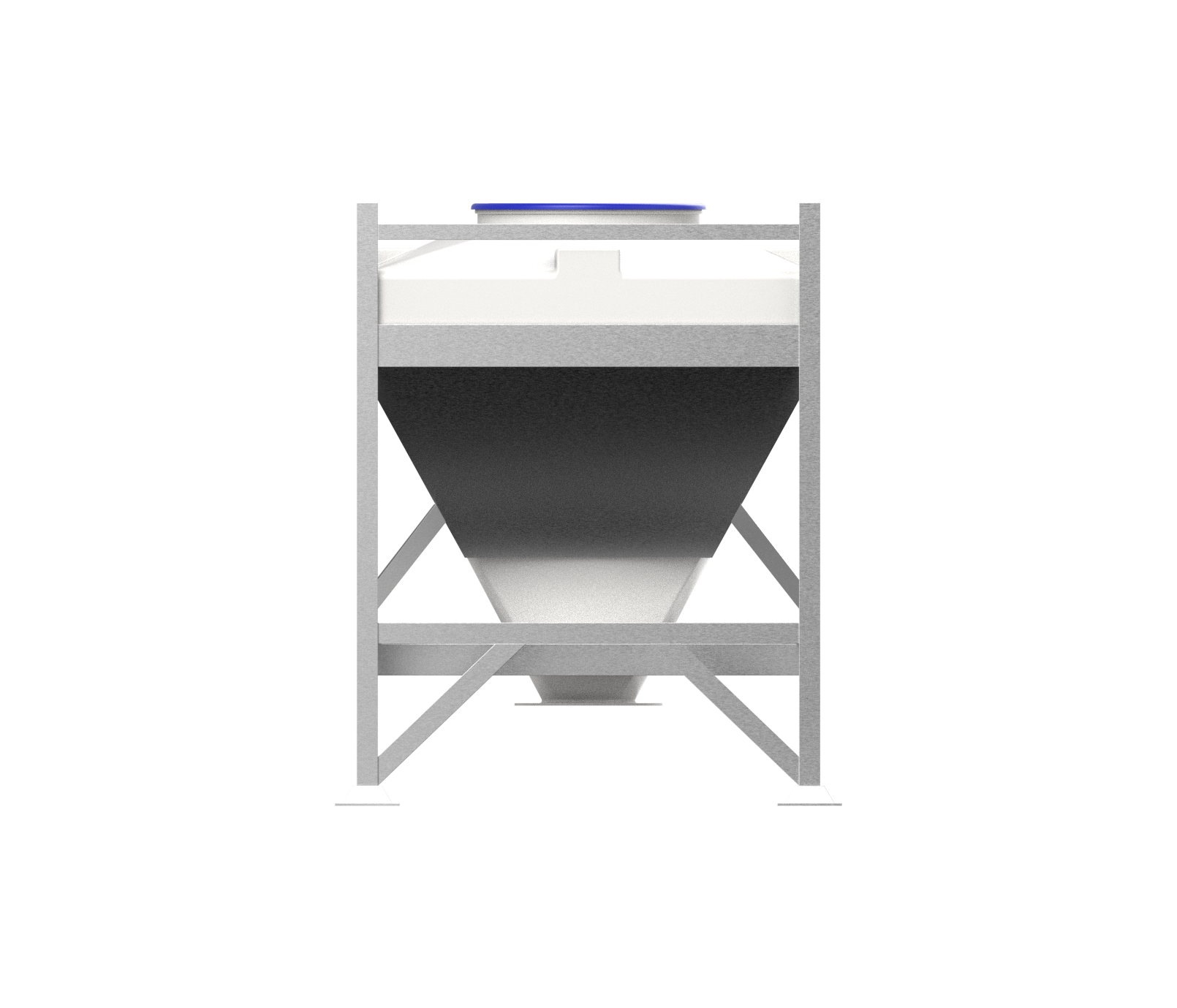

RM-1340 Complete Unit – Includes Steel Frame, Hopper Bottle, 21.5″ Diameter Lever Lock Lid and accepts any 8″ Iris valve or slide gate valve | 24 | 44 | 52 | 57 | 360 |

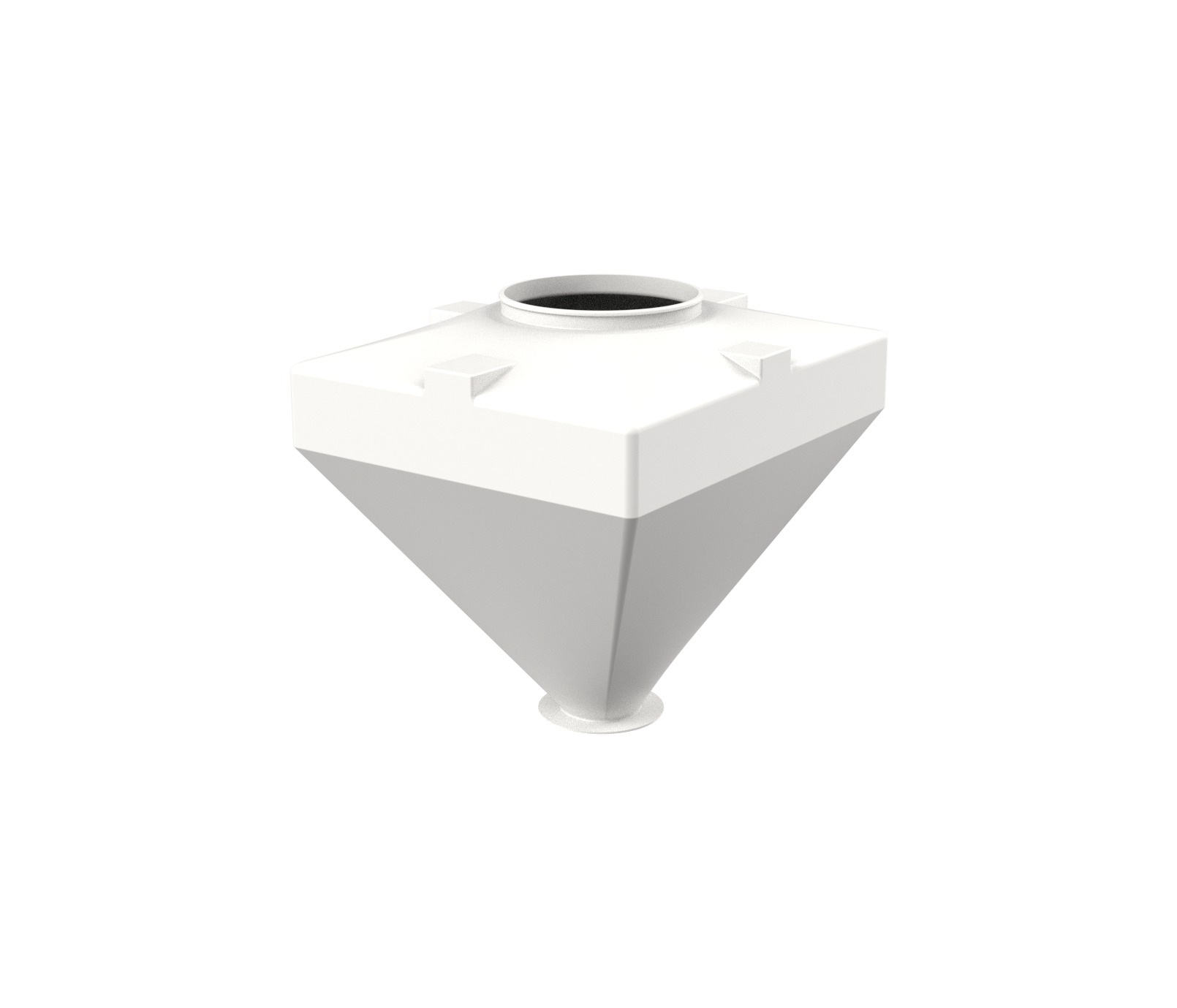

RM-1340 Hopper Bottle Only – Includes 21.5″ Diameter Lever Lock Lid and accepts any 8″ Iris valve or slide gate valve | 24 | 42.5 | 50.5 | 47 | 70 |

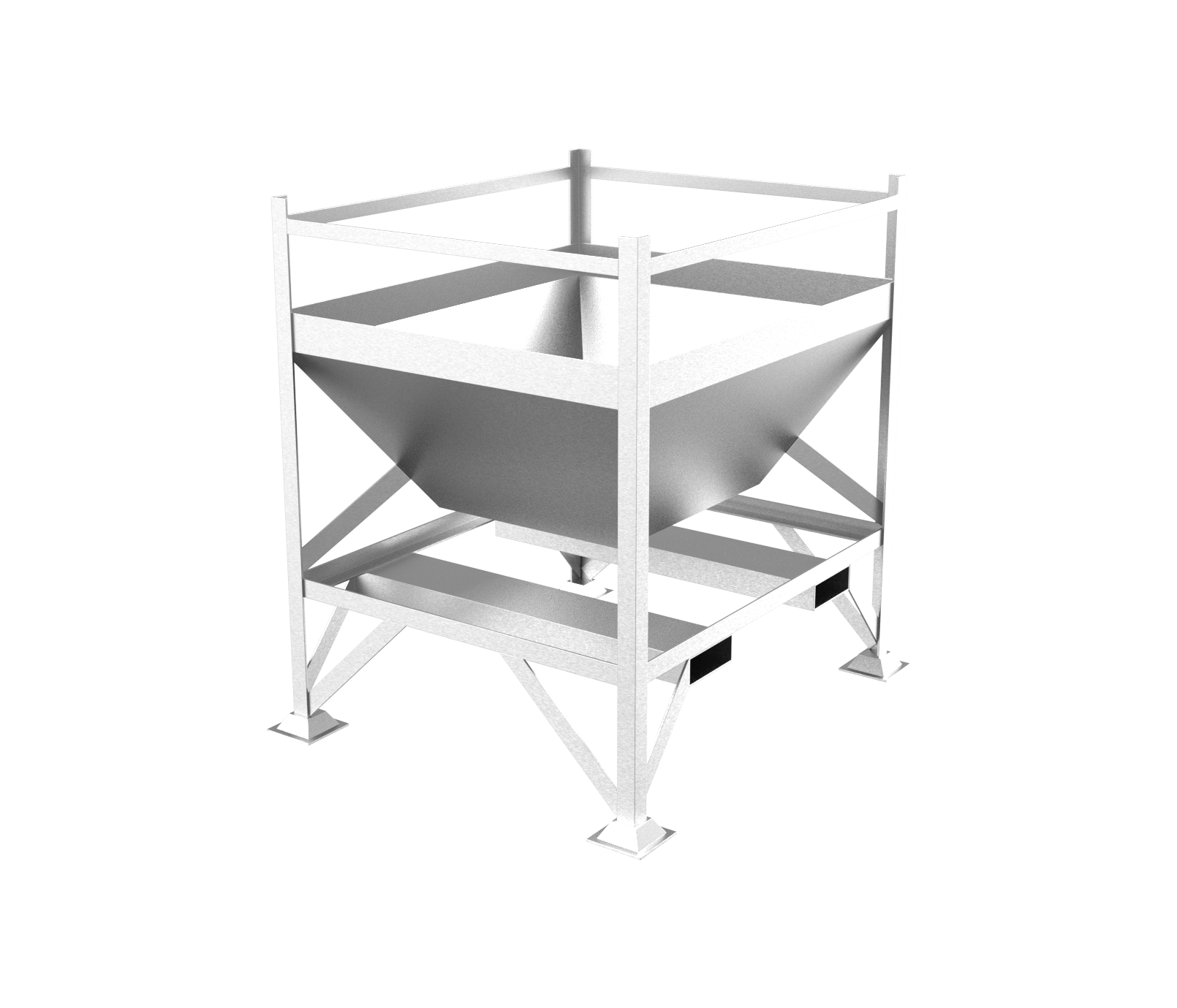

RM-1340 Steel Frame Only | n/a | 44 | 52 | 57 | 290 |
RM-1350 Complete Unit – Includes Steel Frame, Hopper Bottle, 21.5″ Diameter Lever Lock Lid and accepts any 8″ Iris valve or slide gate valve | 44 | 44 | 52 | 75 | 450 |
RM-1350 Hopper Bottle Only – Includes 21.5″ Diameter Lever Lock Lid and accepts any 8″ Iris valve or slide gate valve | 44 | 42.5 | 50.5 | 65 | 100 |
RM-1350 Steel Frame Only | n/a | 44 | 52 | 75 | 350 |
Accessories | Weight (lbs) |
|---|---|
Metal Bolt On 8″ Diameter Iris Valve with Nylon Diaphragm (Will also work if transit cover is added) | |
Metal Quick Disconnect 8″ Diameter Iris Valve with Nylon Diaphragm (Will also work if transit cover is added) | |
Plastic Bolt On 8″ Diameter Slide Gate Valve – Style 2 with 3 5/16″ internal/external opening separation | |
Plastic Bolt On 8″ Diameter Slide Gate Valve – Style 3 with 5 7/16″ internal/external opening separation | |
Plastic Bolt On 8″ Diameter Slide Gate Valve – Style 4 with 4″ internal/external opening separation | |
Plastic Bolt On 8″ Diameter Slide Gate Valve – Style 5 with 4 3/16″ internal/external opening separation | |
Plastic Bolt On 8″ Diameter Slide Gate Valve – Style 6 with 4 1/8″ internal/external opening separation | |
Plastic Bolt On 8″ Diameter Slide Gate Valve – Style 1 with 4 7/8″ internal/external opening separation |
Store and discharge dry resins, powders, and other loose granular solids easily with RM totes.
The rugged steel frame construction makes this an excellent choice for handling solids in general manufacturing processes. The RM tote is a two-piece unit which includes a single-piece polyethylene tote set in a removable steel base. Contents are dispensed through a center discharge slide gate or Iris valve. Built-in fork lift pockets make for easy transport.
